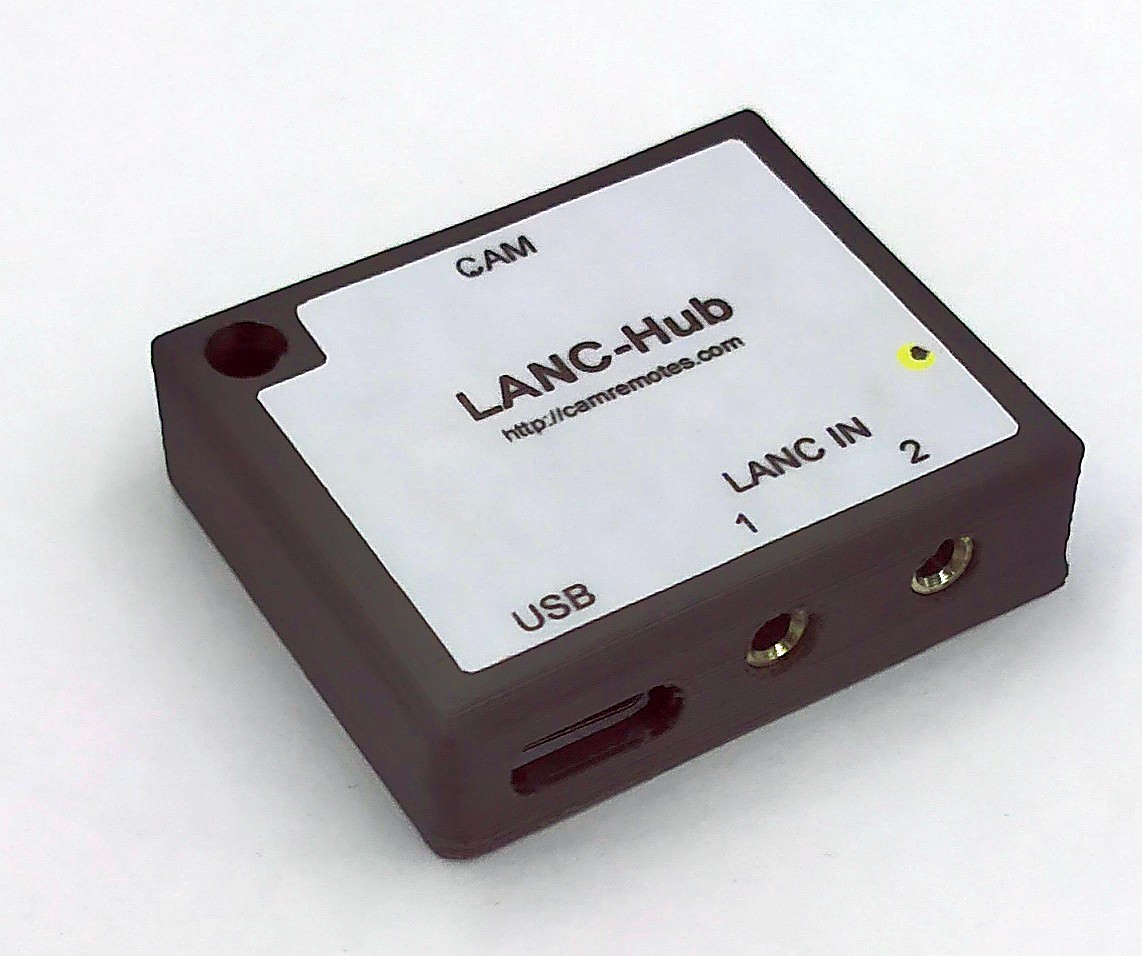

Smart LANC-Hub

Smart LANC-Hub allows you to use multiple LANC devices with any LANC-compatible camera or monitor. Most cameras have only one LANC port – but sometimes you want to use two LANC devices e.g. Portkeys BM5 / Atomos Ninja monitor and Remote start/stop handles (such as Clutch, Tilta etc).

Smart LANC-Hub adapter merges 2 LANC signals from separate remote controls into one LANC signal. Both remote controllers can be used simultaneously without signals collision and data loss. Smart LANC-Hub is supporting all LANC remote controls available on market. Product takes it’s power directly from connected camera or monitor.

Mounting can be done using a screw through the 3mm hole on top of the case.

Bonus feature:
Smart LANC-Hub supports functionality mapping feature which can be configured by configuration software using PC. It allows to use camera features which are not available on remote control. For example if remote control have zoom buttons but miss focus control buttons then zoom function can be remapped to focus control.

If there is need of special usage case then we can customize firmware accordingly.




Download link: Configuration Software.
