RVLVR LABS Clutch Camera Remote Handle

CLUTCH v1.5 is a LANC connected right handed, wired remote control handle with a START/STOP button and two programmable rotary clickable dials. On a Z CAM camera the dials can be programmed to control Aperture, Shutter Speed, ISO, Electronic ND, Audio Gain (ganged and L/R individual), White Balance (momentary Auto WB also), Focus.
It can also turn the camera on/off (by long hold of the START/STOP button)
It is also possible to navigate the menu without taking your hands off the handle

Supported cameras:

* All Z-CAM models
* Sony Pro videocameras (FS7, FX6, FX9): AF, Record, Aperture, ISO, ND, ShutterSpeed, WB
* Sony A-series cameras (requires special adapter cable which will be released during February, requires extra purchase)
* RED Komodo/Raptor (requires special adapter cable which will be released during February, requires extra purchase)


(We are calling this the v1.5. Same original product many of you loved but some upgrades including:

* LANC physical connector change – we’ve made an internal metal cage around the LANC connector so it’s much stronger than ever before
* Internal LANC hub – allows handle to control multiple LANC devices at once or multiple devices to control camera (e.g. Top Handle and Clutch handle)
* Atomos Ninja V control – allows to toggle recording on Ninja V monitor
* Cage design change for USB-C connector clearance when cage is attached
* Four holes on side of thumbwheel so you can crank it super tight if necessary with a small allen wrench or screwdriver
* Torque Pins on rosette wheel – they take the torque on the rosette wheel – instead of the small M2 screws
* Straight LANC cable – instead of coiled cables – coiled cables allow too much stress on the connectors


Link for downloading software to program/remap the buttons is here – Clutch controller software



New firmware functionality includes additional features like VFR rate control directly from the handle and long/short clicks for additional flexibility and speed when shooting.

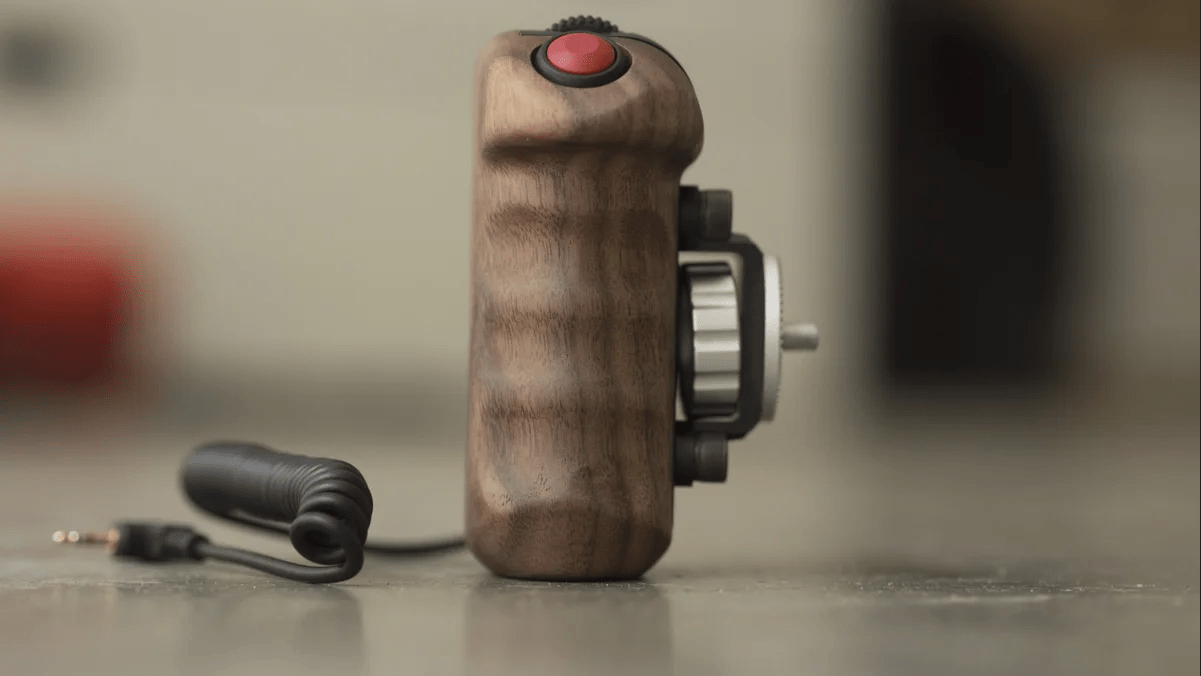

The out of the box Clutch – can control START/STOP and has two rotary push button thumbwheels.

One thumbwheel controls Aperture (clicking it selects the Fn2 button on a Z CAM camera), the other controls ISO and Shutter Speed (clicking the wheel switches between those two functions.

Long clicks of the thumbwheels can be set to a different function (by default long click of front thumbwheel is Fn1 and long click of rear thumbwheel is Fn3)

We worked on ergonomics a lot to make the thumbwheels feel natural for usage during shooting.

One is positioned so it fits directly under the thumb – while not requiring the thumb to rest on it. The other is positioned so the forefinger can naturally access it.

Both Thumbwheels can also be clicked for additional functionality.

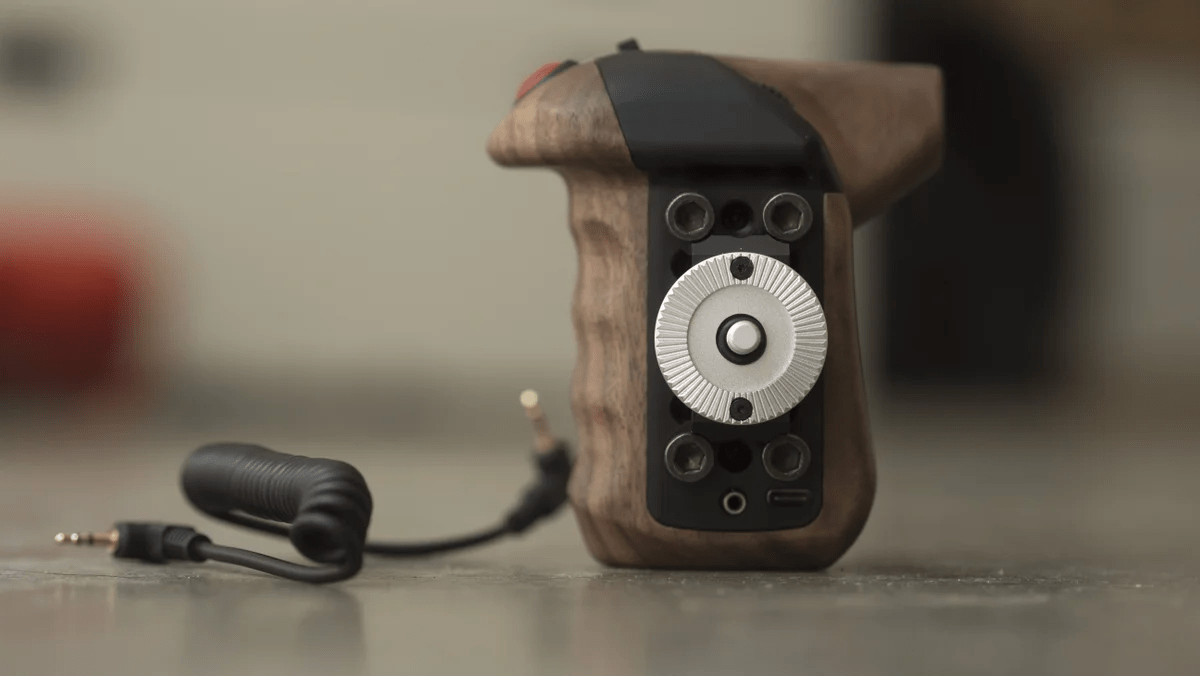

There is small cage with a Male Arri Rosette (four 1/4″ x 20 threaded holes aside).

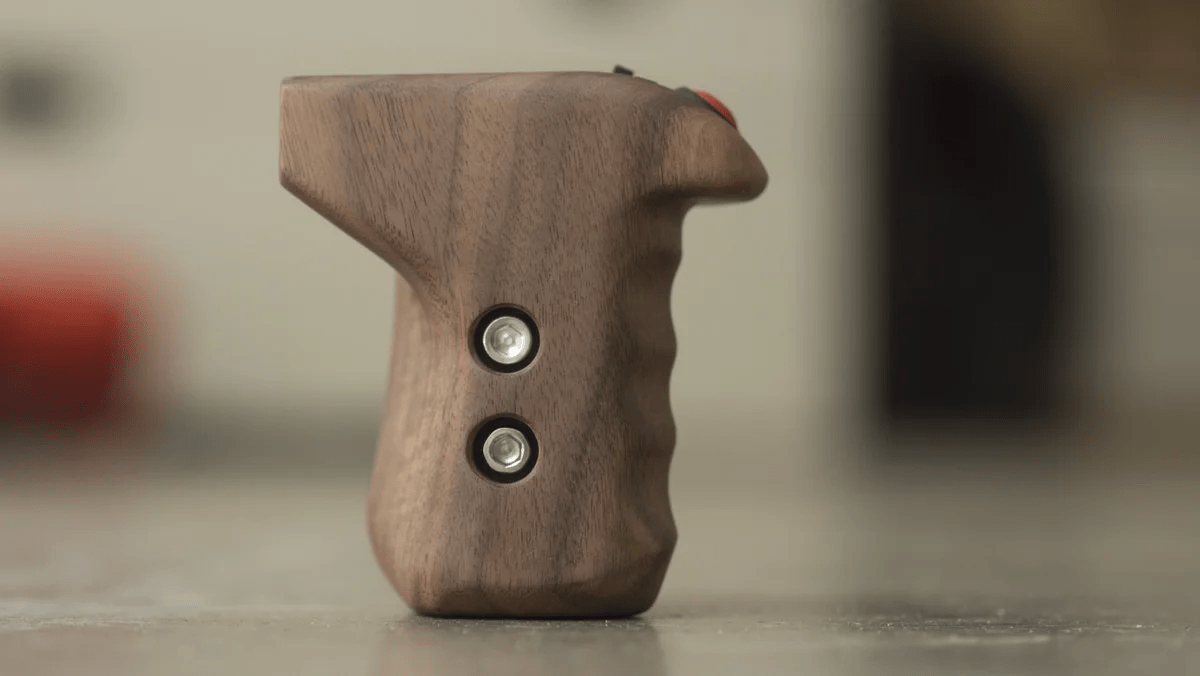

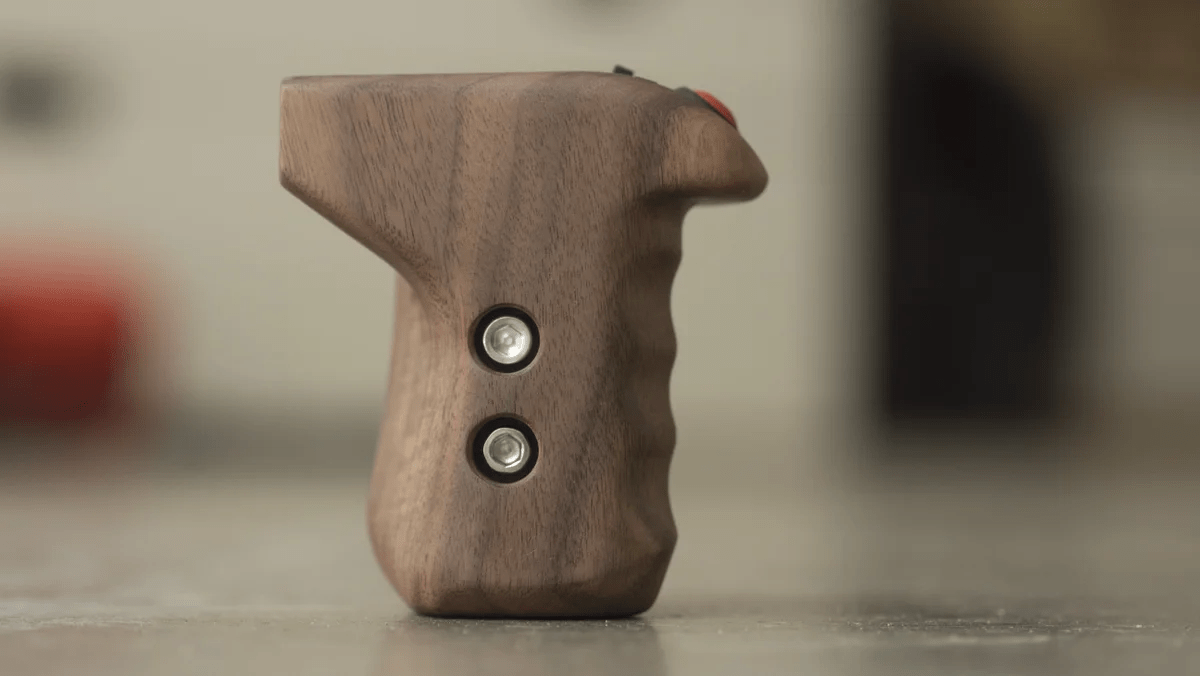

CLUTCH is designed in the USA and made of hand-sanded, hand-oiled black walnut wood with a 6061 Hard black anodized aluminum armature holding custom made electronics.
